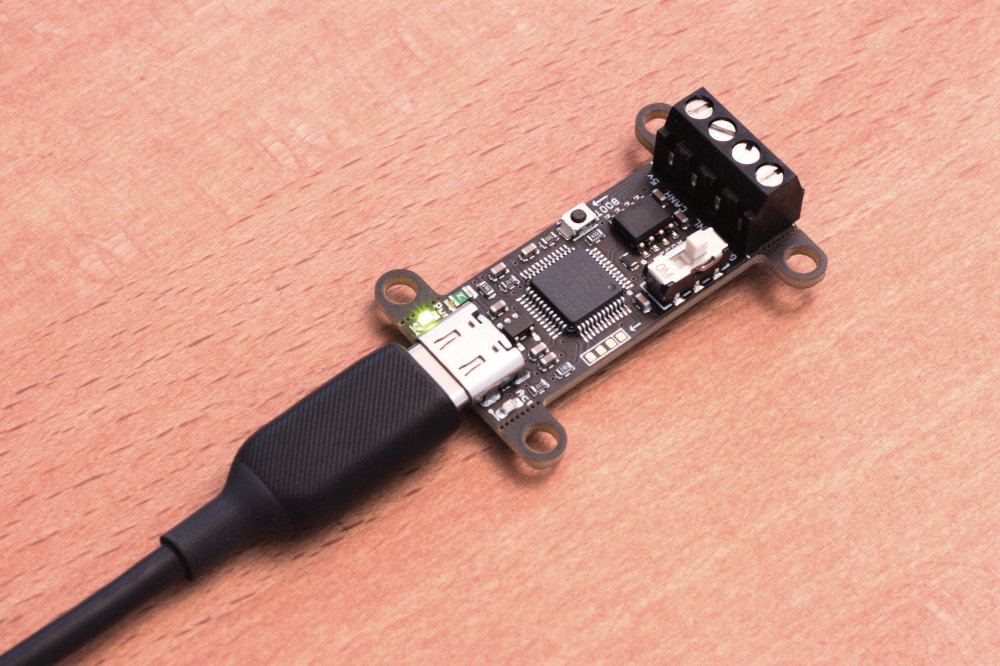

usb2can on Ubuntu
Table of Contents
I. Install Necessary Packages #
Python-can #
sudo apt-get update
sudo apt-get install python3 python3-pip
pip3 install python-can
After successfully installing the python-can library, a warning about the script path may appear, prompting us to add environment variables.
Add the statement to .bashrc and source it.
export PATH=$PATH:/home/semitia/.local/bin
can-utils tools #
sudo apt-get install can-utils
II. Test CAN to USB Device #
1. Check USB Device #
Use the lsusb command to check if the system recognizes your USB device:
lsusb
2. Check Network Interface #
Use the ip link command to check if a CAN network interface exists in the system:
ip link
Look for an interface like can0. If it exists, it means the system has recognized your CAN device and created the corresponding network interface.
3. Use dmesg to View System Logs #
You can use the dmesg command to view system logs and understand the detailed information when the device is connected:
dmesg | grep can
4. Configure and Start CAN Interface #
If the device has been detected, you can use the following command to configure and start the CAN interface (assuming the device name is can0):
sudo ip link set can0 up type can bitrate 1000000
6. Send/Receive Test #
Use the candump command to listen for messages on the CAN bus:
candump can0
If the CAN device and connection are normal, you should be able to see messages transmitted on the bus.
If there are two devices, you can use the cansend command to send messages via another device:
cansend can1 123#12345678
This will send 4 bytes of data with ID 0x123. The reception effect is as follows.
can0 123 [4] 12 34 56 78
7. Check Device Status #
Display detailed status information of the CAN interface, including configuration and error statistics.
ip -details link show can0
III. Use Python-can Library #
import can
import time
import threading
# Set CAN interface configuration
can0_config = {
'interface': 'socketcan',
'channel': 'can0',
'bitrate': 500000
}
can1_config = {
'interface': 'socketcan',
'channel': 'can1',
'bitrate': 500000
}
# Define messages to send
messages = [
"Hello from CAN0!",
"Greetings from CAN1!",
"CAN is fun!",
"Let's communicate!"
]
def can_sender(bus, msg_id, message):
data = [ord(c) for c in message] # Convert string to byte array
msg = can.Message(arbitration_id=msg_id, data=data[:8], is_extended_id=False)
try:
bus.send(msg)
print(f"Message sent on {bus.channel_info}: ID={msg_id} Data={message}")
except can.CanError:
print("Message NOT sent")
def can_receiver(bus):
while True:
msg = bus.recv()
if msg:
received_message = ''.join(chr(byte) for byte in msg.data)
print(f"Message received on {bus.channel_info}: {received_message}")
def main():
# Create CAN bus objects
can0 = can.Bus(**can0_config)
can1 = can.Bus(**can1_config)
# Start receiver threads
receiver_thread_0 = threading.Thread(target=can_receiver, args=(can0,))
receiver_thread_1 = threading.Thread(target=can_receiver, args=(can1,))
receiver_thread_0.start()
receiver_thread_1.start()
# Send messages
for message in messages:
can_sender(can0, 0x100, message)
time.sleep(1) # Sleep for a while to avoid send conflicts
can_sender(can1, 0x200, message)
time.sleep(1)
# Allow some time to receive messages
time.sleep(5)
# Close CAN bus
can0.shutdown()
can1.shutdown()
return
if __name__ == "__main__":
main()
IV. Close Device #
sudo ip link set can0 down
sudo ip link set can1 down
links #
A great open source usb-can project for stm32, canable and PCAN firmware - CSDN Blog
Makerbase CANable V2.0 Usage on Window System_canable 2.0-CSDN Blog
CANable updater #
linux #
sudo nano /etc/udev/rules.d/48-stm-dfu.rules
# Add
SUBSYSTEMS=="usb", ATTR{idVendor}=="0483", ATTR{idProduct}=="df11", MODE:="0666"
sudo udevadm control --reload-rules
sudo udevadm trigger
